WO Configuration ~ Child Work Order Config

The ability to carry over fields into a Child WO that is manually created from an existing WO Linked Work Orders panel.  *NOTE: this does not affect corrective generation created WOs from PM Readings.

*Note: Once a configuration has been created or edited, you must log out and back into CMS to see the changes.

Options for Configuring the Child Work Order

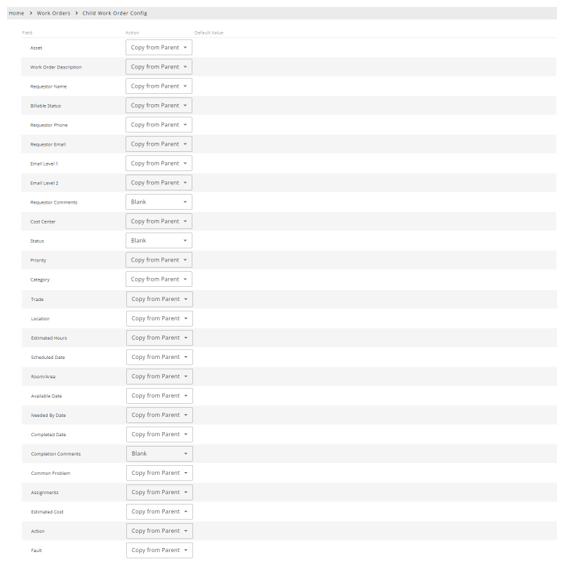

On this screen you can set work order fields to copy from the parent, be set to blank, or in many cases, set a default value for the child work orders.

When you set the option to Blank, no value will carry over from the parent work order to the child for that field. Setting the option to Copy from Parent will use the parent’s value at the time of the child work order creation in the field on the child. *Note: if you subsequently change the value in the parent, it will NOT change the value in the child WO.

The Default option allows for different things depending on the type of field.

For a text field, you can enter whatever text you would like to include on the child for that field.  One example would be to default the Requester Comments to “New Child WO created, see parent for more information.”

For a dropdown field type, you will have the option to select the value from the list that would be available when creating a new work order in that segment.

For a special input type field, like Estimated Hours, where the field expects a numeric value, you can use the arrows or just type in a number to set as the default.

Child Work Order Creation after configuration

If there is no configuration for the child work order configuration, child work orders will continue to use the information from the parent for most fields, except for Requestor Comments and Completion Comments, which will continue to be blank (as they currently are).

After adjusting the settings for the configuration and clicking save, (and a log out and login) new child work orders will be created with the configured fields. To create a new child work order for this process, go into the edit screen of an existing work order and click on the New Child button.

This will create a new, linked child work order using the defaults you set in the configuration. It can then be edited as needed.

February 2025
